EDP3X10

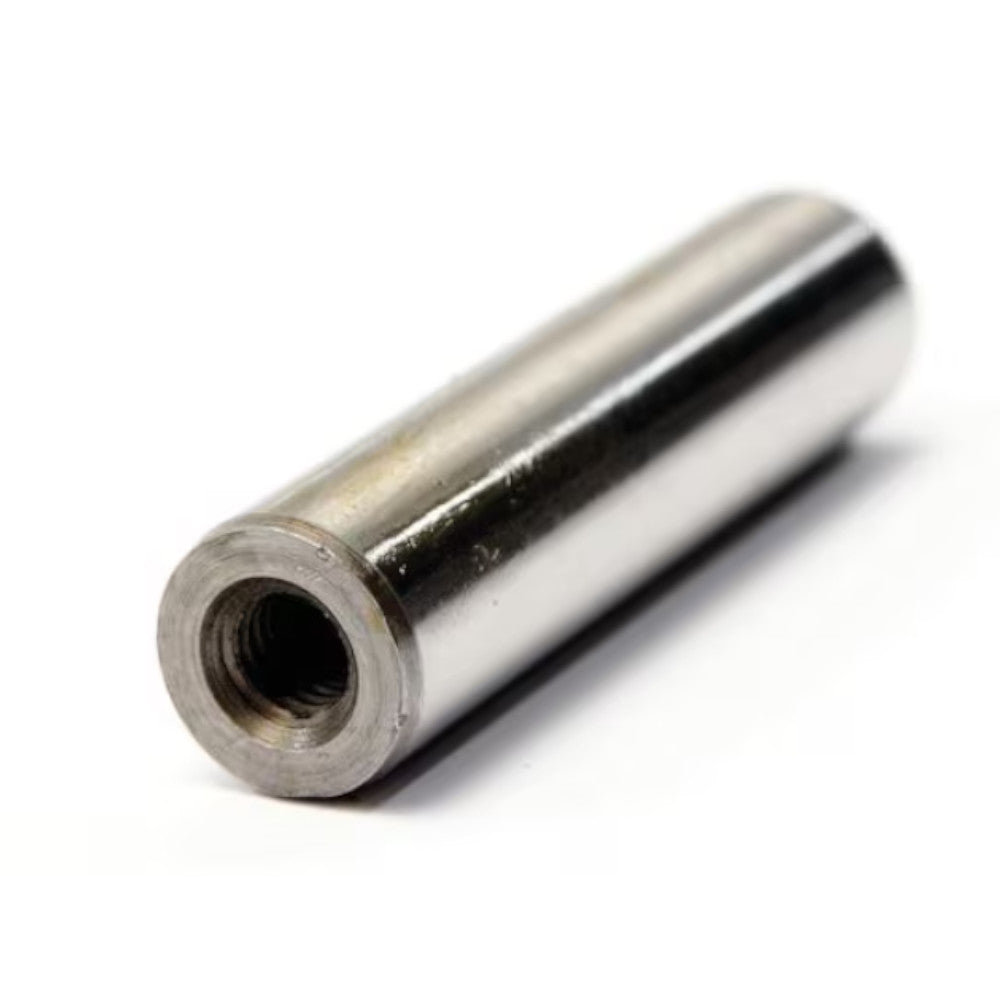

Metric Extractable Dowel Pins Hardened & Ground Din 7979D

£5.11
Price includes VAT. Shipping calculated at checkout.
Size

Pickup available at Bridgwater, Somerset

Usually ready in 2 hours

Metric Extractable Dowel Pins Hardened & Ground DIN 7979D: Precision Alignment with Easy Removal

Achieve flawless alignment and simplified maintenance in your engineering projects with our Metric Extractable Dowel Pins Hardened & Ground DIN 7979D. These precision-engineered pins are essential components for professionals seeking accuracy and efficiency in machinery construction, tooling, and complex equipment assembly.

Exceptional Material and Design

Crafted from high-quality alloy steel, these dowel pins are hardened and ground to provide superior strength, wear resistance, and dimensional accuracy. The hardening process enhances durability, allowing the pins to withstand significant shear forces without deformation. Precision grinding ensures a smooth surface finish and exact dimensional tolerances, facilitating seamless insertion and a secure fit within mating components.

Extractable Feature for Easy Removal

What sets these dowel pins apart is their internal threaded hole, conforming to the DIN 7979D standard. This design allows for effortless extraction using a pull-out screw or extraction tool, making maintenance, repairs, or adjustments more efficient. You can remove the pins without damaging the assembly or adjacent components, reducing downtime and preserving the integrity of your equipment.

Compliance with DIN 7979D Standards

Adhering to the DIN 7979D specification ensures these pins meet stringent international standards for dimensions, tolerances, and material properties. This compliance guarantees compatibility with other standardized components and provides confidence in their performance within your assemblies.

Key Features:

  • Precision Alignment: Enables exact positioning of parts, crucial for assemblies requiring high accuracy.
  • Hardened and Ground Steel Construction: Offers exceptional strength and resistance to wear.
  • Extractable Design: Internal threading allows for straightforward removal without damaging surrounding components.
  • Metric Sizes Available: Wide range of diameters and lengths to suit various engineering applications.
  • Compliance with DIN 7979D: Ensures consistent dimensions and interoperability with other DIN-compliant parts.
  • Versatile Applications: Ideal for machinery alignment, tooling setups, automotive assembly, and more.

Typical Applications:

  • Machinery Manufacturing: Aligning components in equipment where disassembly may be required.
  • Tooling and Fixtures: Creating precise jigs and fixtures with the convenience of easy pin removal.
  • Automotive and Aerospace Engineering: Aligning engine or aircraft components where maintenance access is necessary.
  • Mold and Die Making: Ensuring precise alignment in molds and dies with the ability to extract pins during maintenance.

At Electro South West Ltd, located in Bridgwater, Somerset, we're dedicated to supplying top-quality engineering components to professionals throughout the UK. With free shipping on orders over £30, acquiring the precise parts you need for your projects has never been more convenient.
