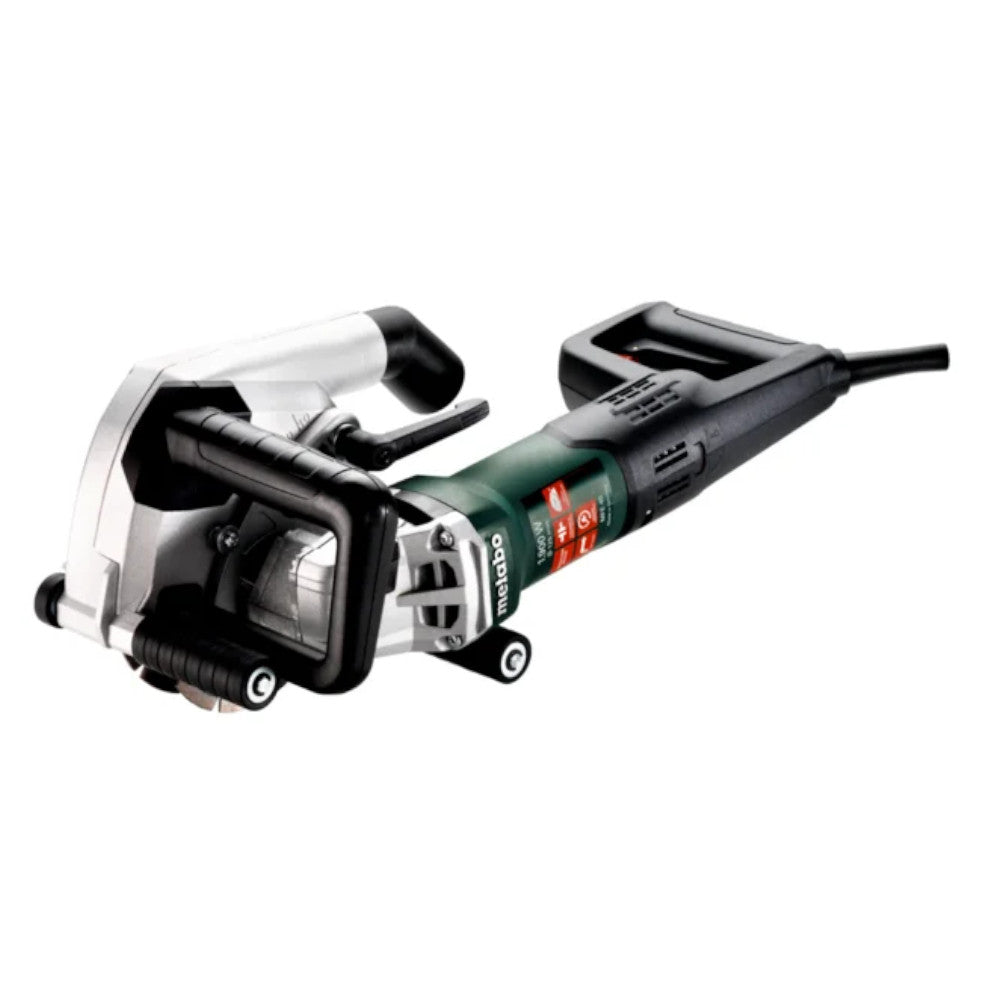

Metabo MFE 40 Wall Chaser 240v | 604040590

Metabo  |  SKU: 604040590
Regular price £0.00
Ships today if you order within --hrs --mins
Four Decades of Experience Supplying hardware and tooling since 1986.

Free UK Delivery On orders over £40.

Hassle-Free Returns Return any item within 30 days for an exchange or refund.
Official Stockist

The Metabo MFE 40 240V Wall Chaser is an engineered solution for electrical installations, designed to lay cables, conduits, and empty pipes under plaster with speed and precision. Powered by a robust 1900W Marathon motor, this mains-driven tool delivers the high torque and constant speed required to cut through tough masonry materials. With adjustable cutting depths up to 40mm and multiple groove width options, it provides the versatility needed for professional site work while ensuring high levels of user safety and effective dust management.

Feature Icon
Maximum Work Progress: Combining a powerful 1900W motor with Tacho-Constamatic (TC) Full Wave Electronics to maintain constant speed under heavy structural loads.
Feature Icon
Highly Adjustable Channels: Offers flexible channel customisation with cutting depths from 10mm to 40mm and five selectable groove widths up to 35mm.
Feature Icon
Enhanced Operator Safety: Outfitted with the Metabo S-automatic safety clutch for immediate mechanical decoupling if a cutting disc jams unexpectedly.

For electricians and plumbing installers, creating uniform recesses in plaster, brick, or concrete requires machinery built for continuous structural strain. The Metabo MFE 40 240V Wall Chaser balances high-efficiency raw performance with precise mechanical adjustments to streamline cable and conduit installations. At its core is a 1900W Marathon motor, constructed with specialized protective coatings to resist the invasive grit generated by chasing. This is paired with an intelligent electronic management system that guarantees consistent torque and constant speed under load, preventing stalling when navigating structural inconsistencies.

Operational control is a key design focus of the MFE 40. By utilising a push-cut motion rather than a pulling motion, the operator retains an unobstructed view of the cutting path. This design choice prevents veering and ensures straight, professional results across vertical and horizontal planes. The die-cast aluminium hood provides heavy-duty shielding while riding smoothly on integrated rubber rollers, minimizing marring on finished surfaces and reducing operator fatigue during long shifts.

Safety elements are embedded directly into the tool’s operations. If a 125mm diamond disc encounters a hidden obstruction and binds, the integrated mechanical S-automatic safety clutch quickly uncouples the drive mechanism, mitigating dangerous kickback. Combined with electronic soft-start circuitry that controls initial torque, the operator can start cuts smoothly and predictably. When connected to an industrial-grade extraction system, the tool seals effectively against surfaces to capture airborne crystalline silica at the source, helping users maintain compliance with occupational health guidelines.

Product Details

  • Key Features

    Model Number MFE 40 (240V)

    Product Code / SKU 604040590

    EAN 4007430327628

    Voltage 240 V

    Rated Input Power 1900 W

    Output Power 1120 W

    Cutting Disc Diameter 125 mm

    Adjustable Cutting Depth 10 – 40 mm

    Possible Groove Widths 9 mm / 15.5 mm / 22 mm / 28.5 mm / 35 mm

    No-Load Speed 5,000 rpm

    Speed at Rated Load 4,200 rpm

    Torque 6 Nm

    Weight (Without Cable) 4.6 kg

    Cable Length 4 m

    Vibration Output 5.5 m/s² (Uncertainty K: 1.5 m/s²)

    Sound Pressure / Power Level 93 dB(A) / 104 dB(A)

  • Whats in the box?

    Spacer Rings

    2 Diamond cutting discs

    Flange nut

    Face pin wrench

    Chase chisel

    Plastic carry case

  • Metabo MFE 40 Wall Chaser 240v | 604040590

    Metabo MFE 40 Wall Chaser 240v | 604040590

Frequently Asked Questions

Can this wall chaser be used with just one diamond blade?

Yes. The Metabo MFE 40 is fully compatible with single-disc setups, allowing it to function as a standard concrete cutter for clean cutting or trimming jobs when a dual-groove channel is not required.

How do you adjust the width of the groove?

The channel width is adjusted using the included spacer ring set. By arranging the spacer rings on the spindle between the two diamond blades, you can quickly configure the machine to cut at widths of 9mm, 15.5mm, 22mm, 28.5mm, or 35mm.

What happens if the tool begins to overheat during intensive cutting?

The unit features an integrated LED signal light that monitors operational status. If the tool experiences an overload or approaches thermal limits, the LED indicator will alert the user to reduce forward pressure, preserving the service life of the motor.
