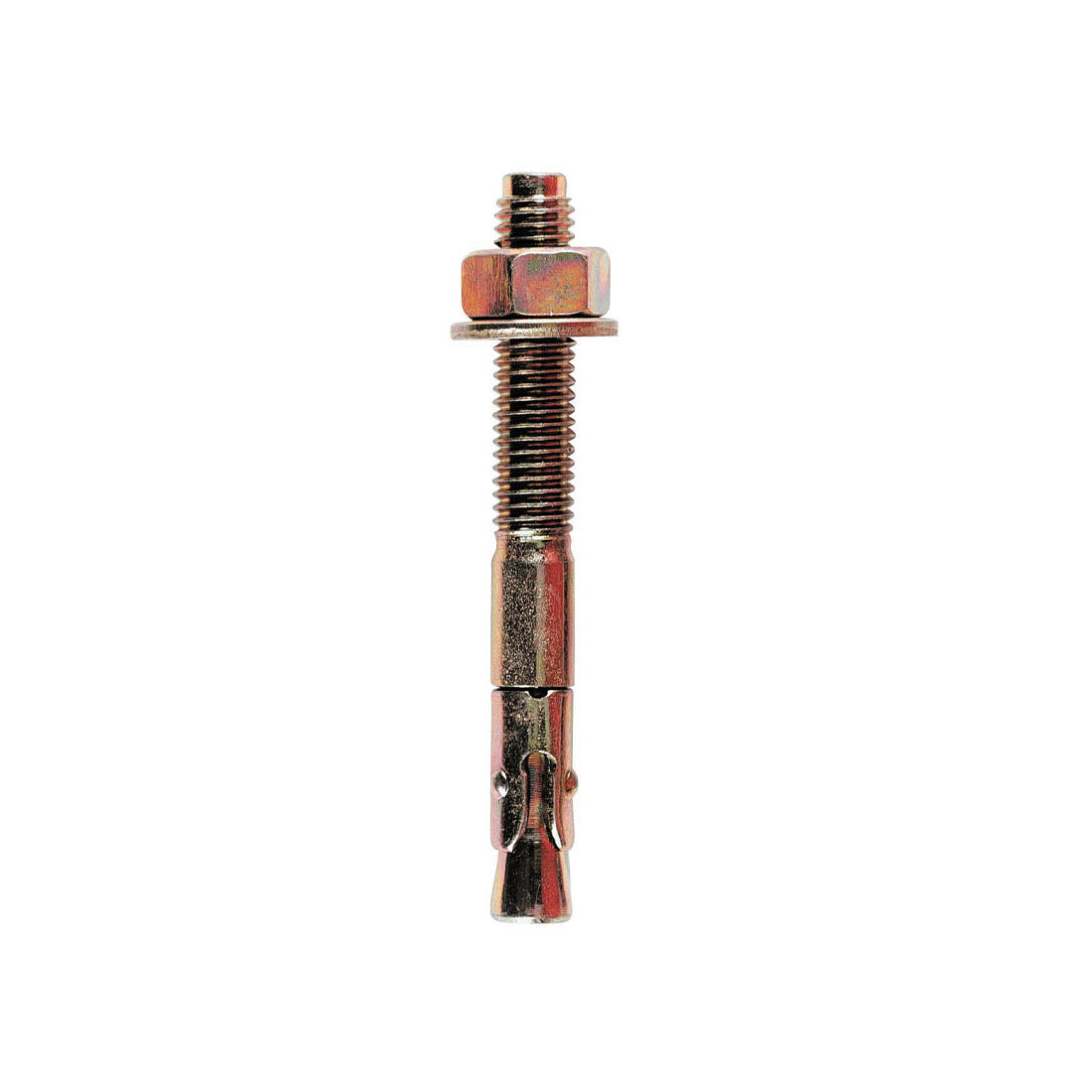

Throughbolts Zinc and Yellow Plated (ZYP)

Overview

Zinc and Yellow Plated (ZYP) throughbolts are high-strength, torque-controlled expansion anchors designed for solid, non-cracked concrete. Featuring a clever true-to-size diameter, they allow you to drill and fix straight through your bracket or baseplate, completely eliminating the need to mark out holes and reposition heavy equipment.

How it works

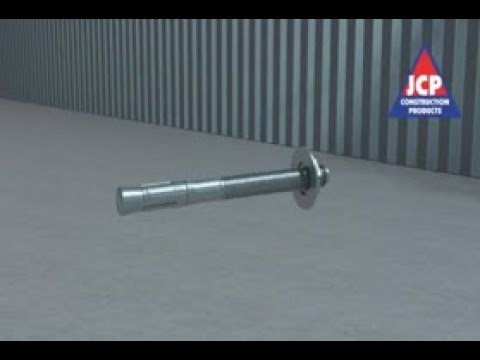

Installing a throughbolt is brilliantly fast. Position your fixture exactly where you want it, and using a hammer drill, bore a hole directly through the fixture's clearance hole straight down into the concrete. Clear the dust out, then firmly tap the throughbolt through your fixture and into the concrete hole until the washer sits flush against the metal. Finally, tighten the nut with a torque wrench. As you tighten, the internal wedge pulls up, flaring the three-way expansion sleeve aggressively against the concrete walls for a permanent, rock-solid hold.

Eliminate Tedious Layout Work

When you are bolting down heavy machinery or installing continuous runs of steel railing, constantly lifting and shifting materials to mark drill holes is exhausting and inefficient. Every time you move a heavy baseplate, you risk slight misalignments that can ruin your installation.

The Ultimate "Through Fixing"

These ZYP throughbolts solve this exact problem. They are engineered as true "through fixings." This means the hole you drill into the concrete is the exact same diameter as the bolt itself.

You simply place your bracket or metal structure exactly where you want it, drill directly through the fixture's pre-drilled clearance hole into the concrete, drop the bolt in, and tighten it down. It is a massive time-saver for any professional tradesperson.

Unyielding Expansion Grip

Strength is just as important as speed. Once you drop the anchor in and apply a wrench, it acts as a torque-controlled fixing. As you tighten the nut, the central bolt is pulled upward.

This action forces the three-way expansion sleeve to spread outward, gripping aggressively against the sides of the concrete hole. You get an incredibly secure, immediate mechanical lock that easily handles heavy static loads.

Built for Professional Safety

Working on commercial sites means adhering to strict safety and durability standards. These robust steel anchors carry a Reaction to Fire Class A1 rating, ensuring maximum safety for structural steelwork and critical brackets.

Additionally, the tough Zinc and Yellow Plated (ZYP) finish features a minimum 5µm thickness. This provides excellent resistance against everyday workshop wear, keeping your installations looking professional and structurally sound for the long haul.

Key Features

• Hole diameter exactly equals bolt diameter for immediate through-fixing.
• Torque-controlled installation gives a measurable, secure holding power.
• Features a high-grip, three-way steel expansion sleeve.
• Durable Zinc and Yellow Plated (ZYP) finish (minimum 5µm thickness).
• Carries a Reaction to Fire Class A1 safety rating.
• Constructed from high-strength steel.
