Heavy Section Tek Screws - Self-Drilling Screws for Steel

JCP
From £0.10
Ships today if you order within --hrs --mins
Four Decades of Experience Supplying hardware and tooling since 1986.
Free UK Delivery On orders over £40.
Hassle-Free Returns Return any item within 30 days for an exchange or refund.

The JCP Metalfix MFH Heavy Section Self-Drilling Screws are the professional's choice for fastening directly into structural steel from 3.0mm up to 12.5mm thick. These heavy-duty tek screws combine drilling and tapping into a single, rapid action, dramatically increasing your on-site productivity.

Engineered for performance, each screw features a formidable No. 5 drill point that bites instantly into steel, clearing swarf efficiently to prevent binding and tip burnout.  The case-hardened C1022 steel construction provides the exceptional strength and ductility needed to create a secure, reliable fixing every time.

Perfect for internal steel framing, securing brackets, assembling purlins, and general fabrication, these screws are the definitive solution for any job involving heavy-section steel. For other applications, explore our full range of Self-Drilling Screws.

Part Number Thread Diameter (d nom) mm Length (L) mm Point Type Steel Thickness (t steel) Max Fixture Thickness (t fix) mm Description
MFH55022 5.5 22 4 3.0–6.0 5 Heavy Section
MFH55032 5.5 32 5 4.0–12.5 5 Heavy Section
MFH55040 5.5 40 5 4.0–12.5 13 Heavy Section
MFH55050 5.5 50 5 4.0–12.5 23 Heavy Section
MFH55060 5.5 60 5 4.0–12.5 33 Heavy Section
MFH55070 5.5 70 5 4.0–12.5 43 Heavy Section
MFH55080 5.5 80 5 4.0–12.5 53 Heavy Section

Product Details

  • Key Features

    • Pack Type: Sold individually.
    • Product Type: Heavy Duty Tek Screws / Self-Drilling Screws.
    • Application: For fastening steel components to heavy section structural steel.
    • Drilling Capacity: As self-drilling screws, they handle 3.0mm to 12.5mm steel without a pilot hole.
    • Material: Case-Hardened C1022 Steel for a strong and durable tek screw.
    • Finish: Bright Zinc Plated (BZP) Minimum 8µm for corrosion resistance in dry, internal environments.
    • Head Type: 8mm (5/16") Hexagon Head for positive drive with standard tek screw drivers.

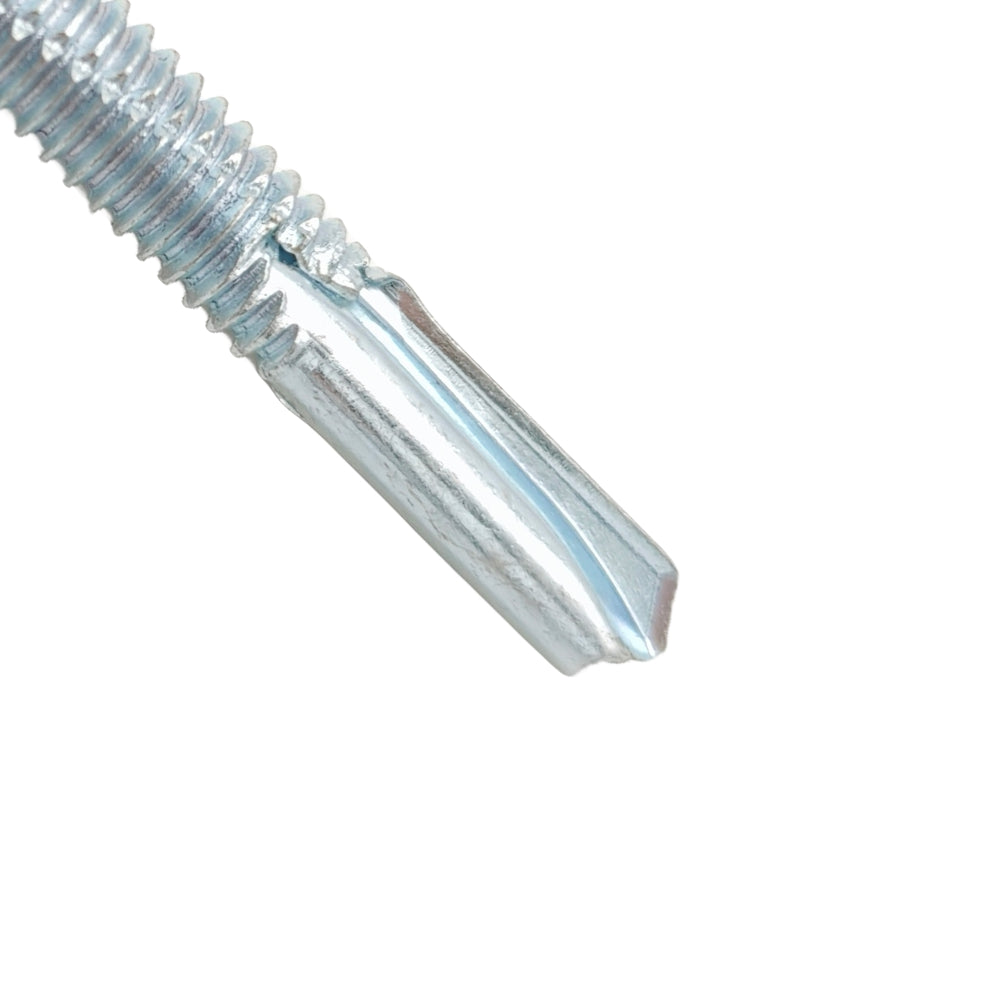

    • Drill Point: No. 5 (Tek 5) heavy-duty point for penetrating thick steel.
    • Standard: Manufactured in conformance with DIN 7504K.
    • Fire Rating: Reaction to Fire Classification A1 (Non-combustible).

  • Whats in the box?

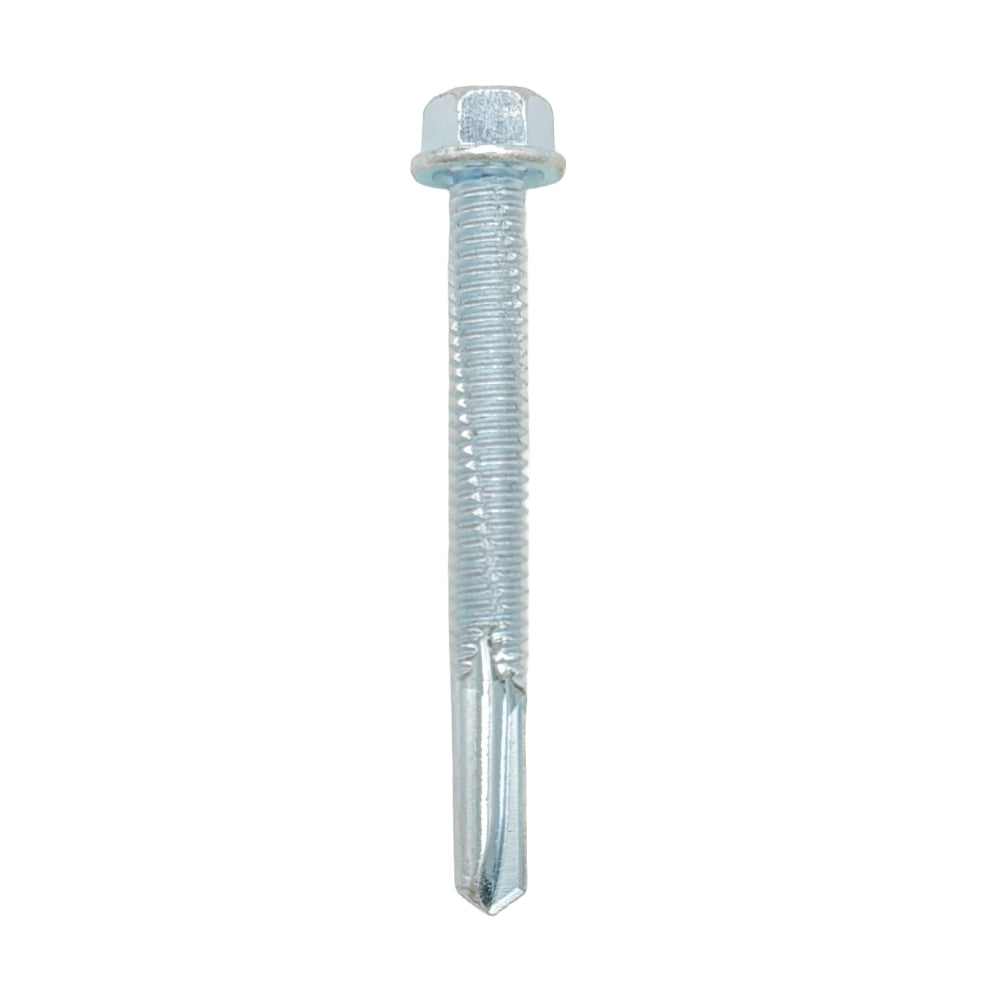

  • Heavy section self drilling tek screw in BZP, viewed side on.
