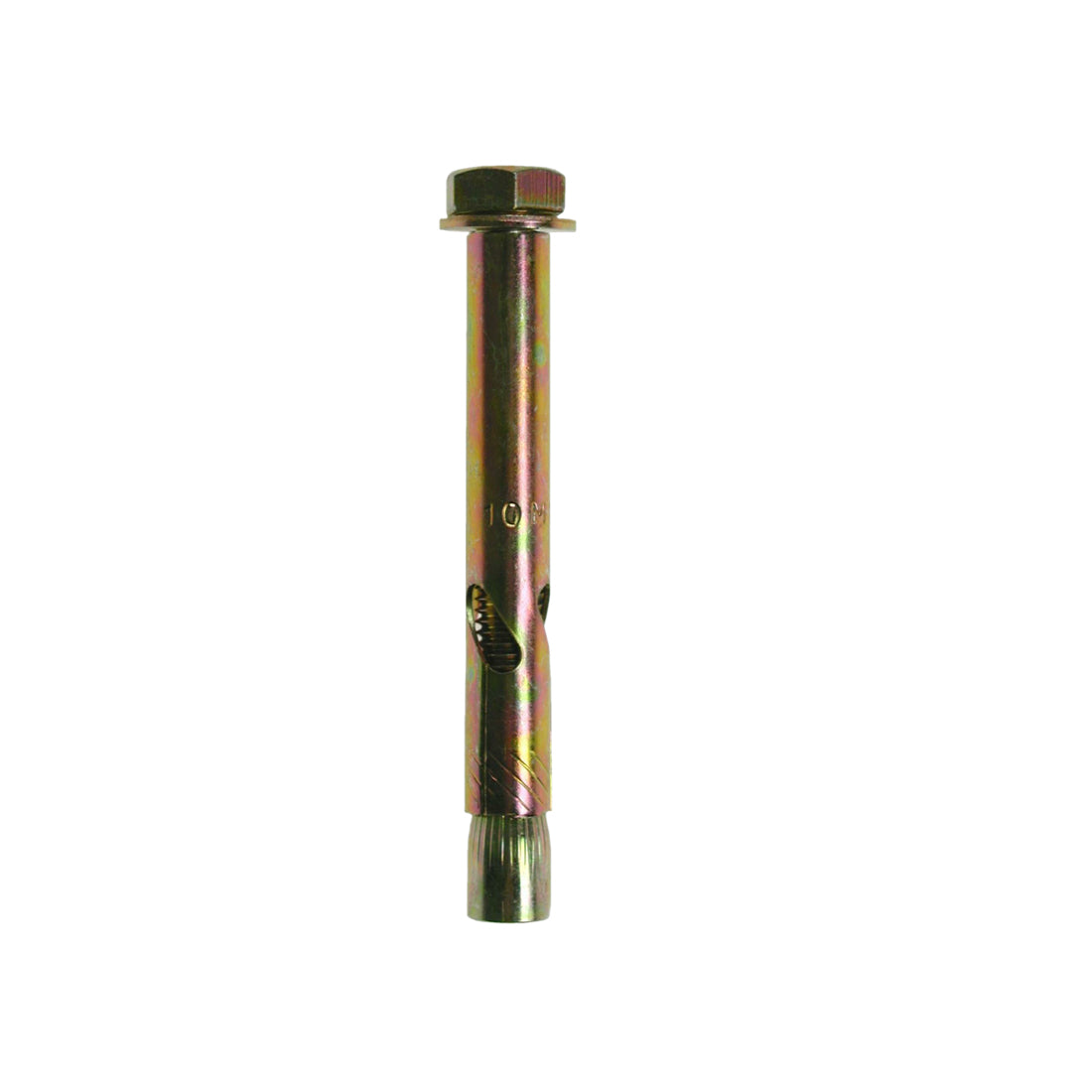

Hexagon Bolt Sleeve Anchors ZYP
Through‑Fixing Masonry Anchors
A zinc‑yellow passivated hex‑bolt sleeve anchor designed for secure, torque‑controlled fixings in concrete, brick, block, stone and perforated masonry. Pre‑assembled for fast through‑fixing installation.
Hexagon Bolt Sleeve Anchors ZYP - is backordered and will ship as soon as it is back in stock.
Hexagon Bolt Sleeve Anchors ZYP - is backordered and will ship as soon as it is back in stock.
Stockist
If you’ve ever tried fixing into concrete or brick and ended up with an anchor that spins, slips or refuses to tighten properly, you’ll know how quickly a simple job can become a headache. That’s where Hexagon Bolt Sleeve Anchors ZYP make life easier. Designed to expand cleanly and grip securely inside solid and perforated masonry, they give you a strong, reliable hold with a familiar bolt‑head finish. Whether you’re installing plates, handrails, racking or signage, these anchors help you get the job done quickly, cleanly and with confidence.
How it works
The diagonal slot in the sleeve allows it to collapse and expand evenly when tightened. This creates a strong clamping force inside the substrate. The hex bolt head provides easy tightening and a clean, visible finish.
Built For...
Compatibility
-
Sold in
Downloads
Product Description
Hexagon Bolt Sleeve Anchors ZYP
Fixing into masonry can be unpredictable, one minute everything tightens perfectly, the next the anchor spins in the hole or refuses to grip. It slows you down and makes the job look less professional than it should.
Hexagon Bolt Sleeve Anchors ZYP are designed to avoid those problems. Their thin‑walled sleeve expands smoothly inside concrete, stone, brickwork, perforated bricks and dense concrete blocks. The diagonal slot helps the sleeve collapse evenly, giving you a strong, consistent hold every time.
The hex bolt head is a big advantage too. It gives you a familiar tightening point, a clean finish and easy access with standard tools. Perfect for visible installations where a bolt‑head look is preferred.
Because they’re pre‑assembled, installation is quick and straightforward. Just drill, insert, tighten and move on, ideal when you’re fitting multiple anchors or working at height.
Whether you’re installing plates, handrails, racking, stadium seating or signage, these ZYP‑finished anchors deliver reliable performance for everyday light‑to‑medium‑duty applications.
Key Features
- Material: Steel with ZYP corrosion protection
- Diagonal expansion slot for strong clamping
- Through‑fixing design
- Consistent torque‑controlled expansion
- Bolt‑head finish for easy tightening
- Ideal for light‑to‑medium‑duty applications
Range Data
| Part Number | Anchor Hole Size | Anchor Length | Max Fixture Thickness | Minimum Hole Depth |
| HBSA8X45 | 8mm | 45mm | 2mm | 45mm |
| HBSA8X70 | 8mm | 70mm | 25mm | 45mm |
| HBSA10X45 | 10mm | 45mm | 5mm | 45mm |
| HBSA10X55 | 10mm | 55mm | 15mm | 45mm |
| HBSA10X80 | 10mm | 80mm | 30mm | 50mm |
| HBSA10X100 | 10mm | 100mm | 50mm | 50mm |
| HBSA12X65 | 12mm | 65mm | 5mm | 65mm |
| HBSA12X80 | 12mm | 80mm | 20mm | 65mm |
| HBSA16X110 | 16mm | 110mm | 40mm | 65mm |
Installation Instructions
-
Step 1
Position fixture and drill correct diameter hole to correct depth
-
Step 2
Clean hole by brushing and blowing to remove all dust and drilling debris.
-
Step 3
Insert assembled anchor through fixture into concrete.
-
Step 4
Tighten with torque wrench to recommended torque.
When to use or not to use
Product Details
-
Specifications
-
Whats in the box?
-
Hexagon Bolt Sleeve Anchors ZYP
Frequently Asked Questions
Are these suitable for perforated brick?
Are these suitable for perforated brick?
Yes, the thin‑walled sleeve expands effectively in perforated materials.
Do they come pre‑assembled?
Do they come pre‑assembled?
Yes, each anchor is supplied ready for immediate installation.
Can they be used outdoors?
Can they be used outdoors?
They can be used in sheltered outdoor areas, but for long‑term exposure or marine environments, stainless steel is recommended.
