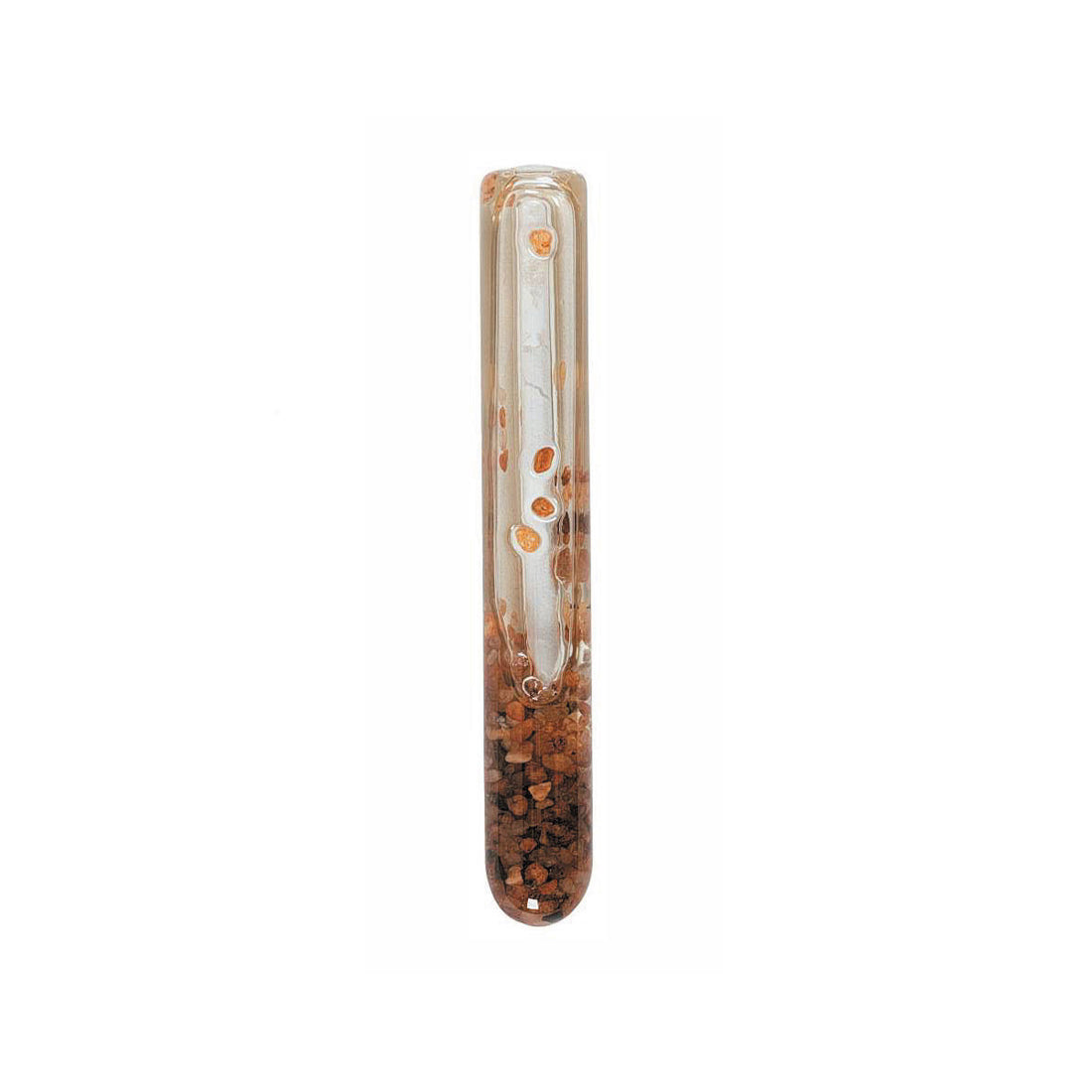

J-Fix Spin-In Glass Capsule Resin Anchors

Overview

J-Fix spin-in glass capsules offer a high-performance, expansion-free anchoring solution for solid concrete and stone. Formulated with fast-curing epoxy acrylate and quartz aggregate, they deliver exceptional load-bearing strength. These ETA Option 1 approved capsules are perfect for securing heavy structural steel and machinery, even in wet or flooded holes.

How it works

Installing these capsules is quick and reliable. First, drill your hole to the required size and thoroughly clean out the dust. Drop the unopened glass capsule into the hole. Using a power drill with a specialized drive adaptor, slowly spin your threaded stud down into the hole. This spinning action crushes the glass, mixing the resin with the hardener and the quartz aggregate. Detach the drill, leave the stud completely undisturbed while the resin cures, and you are ready to apply your heavy load.

Ultimate Load-Bearing Power

When you are installing structural steelwork or safety barriers, failure is simply not an option. Traditional mechanical anchors rely on outward pressure, which can split brittle masonry or damage concrete when installed too close to the edge.

These J-Fix spin-in glass capsules completely remove that risk. Instead of expanding, they use a high-performance epoxy acrylate resin mixed with coarse quartz aggregate to create an incredibly solid chemical bond.

Built for the Toughest Site Conditions

Site conditions are rarely perfect, and these capsules are engineered for reality. You can confidently install them in damp, wet, or even completely flooded holes without sacrificing their holding power.

The real magic of this chemical system is its long-term resilience. Once the resin cures, the bond is exceptionally strong and naturally resists constant, vibrating loads from heavy industrial machinery or racking systems.

Tested and Certified Reliability

When structural integrity is on the line, you need materials you can trust. These capsules carry full ETA Option 1 approval, meaning they have passed rigorous testing for both cracked and non-cracked concrete.

Whether you are mounting Juliet balconies on a residential build or securing massive formwork support systems, you get predictable, certified strength. Fast, reliable, and incredibly strong, it’s the smart way to anchor heavy loads.

Key Features

• Pre-measured glass capsule ensures zero resin waste on site.
• High-performance epoxy acrylate chemical formulation.
• Contains quartz aggregate for superior structural load capabilities.
• Completely expansion-free, stress-free anchoring mechanism.
• ETA Option 1 approved for C20/25 to C50/60 concrete.
• Highly resistant to dynamic and continuous vibrating loads.
