New arrival

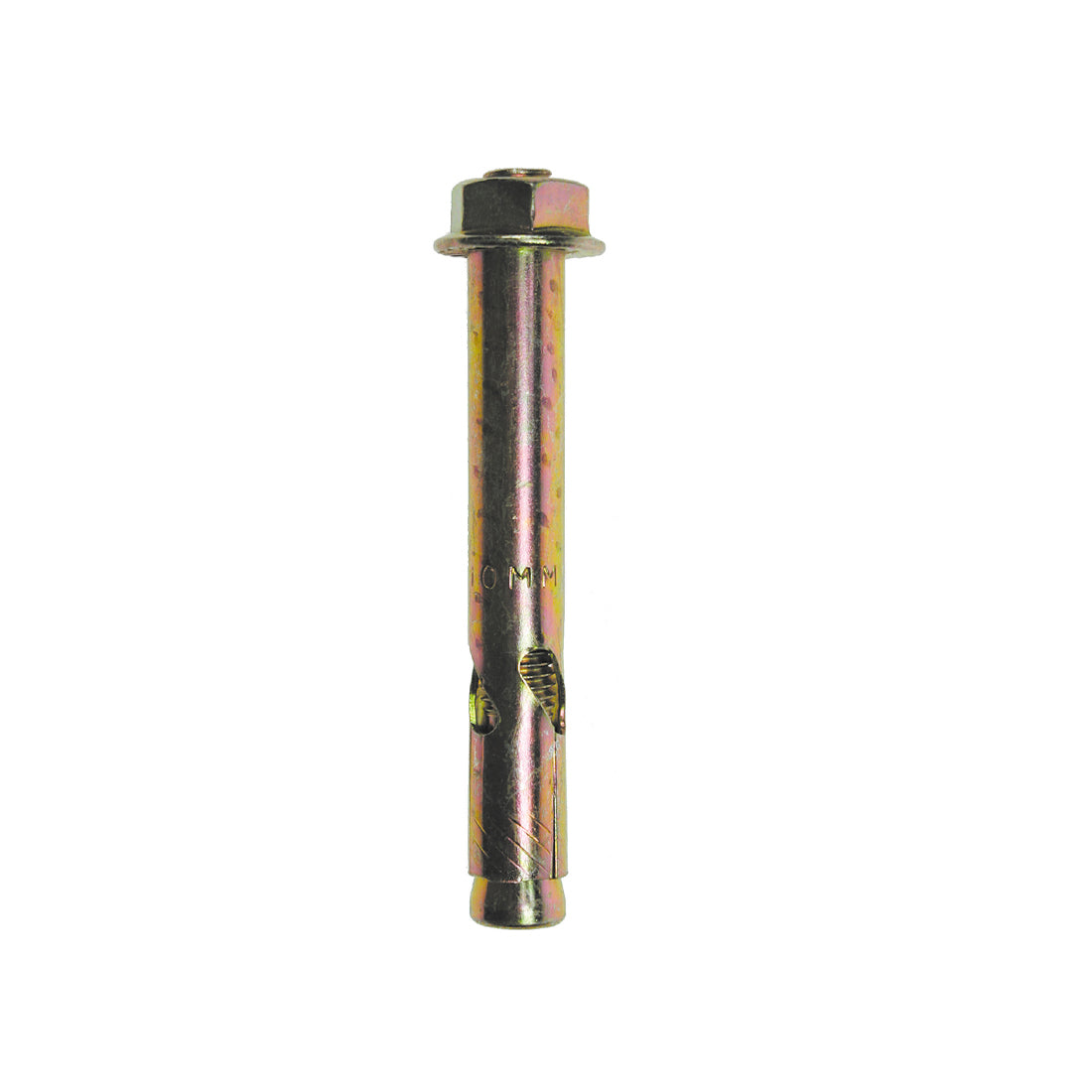

Hexagon Flange Nut Sleeve Anchors ZYP

Reliable Through Fixing for Concrete & Masonry

Electro South West Ltd

A zinc‑yellow passivated, torque‑controlled sleeve anchor for light‑to‑medium‑duty fixings in non‑cracked concrete, brick, block, and natural stone. Pre‑assembled for rapid through‑fixing installation.

From £0.00
Ships today if you order within --hrs --mins
Four Decades of Experience Supplying hardware and tooling since 1986.
Free UK Delivery On orders over £40.
Hassle-Free Returns Return any item within 30 days for an exchange or refund.
Official Stockist

The Hexagon Flange Nut Sleeve Anchor (ZYP) is a versatile, torque‑controlled anchor designed for secure fixing into non‑cracked concrete, dense blocks, solid brick, and natural stone. Its thin‑walled expansion sleeve and diagonal slot design create a strong clamping force, making it ideal for light‑to‑medium‑duty applications. Pre‑assembled for fast installation, it delivers dependable performance across a wide range of on‑site fixing tasks.

How it works

When the nut is tightened, the anchor sleeve expands inside the hole. The diagonal slot allows the sleeve to collapse and grip the substrate, creating a strong clamping force between the fixture and the base material. This controlled expansion ensures a secure, reliable hold.

Feature Icon
Zinc & yellow passivated (ZYP) corrosion protection
Feature Icon
Thin‑walled sleeve ideal for masonry and concrete
Feature Icon
Torque‑controlled expansion for secure anchoring

Built For...

  • Builders and installers working with concrete or masonry
  • Contractors needing reliable through‑fixings
  • Fit‑out teams installing plates, rails, signs, or racking
  • Anyone requiring simple, secure mechanical anchoring


Compatibility

  • Non‑cracked concrete
  • Dense concrete blocks
  • Solid brick
  • Perforated brick (depending on load)
  • Natural stone
  • Colour
    • Yellow
  • Sold in
    1 (Sold Each)

Downloads

Installation Instructions

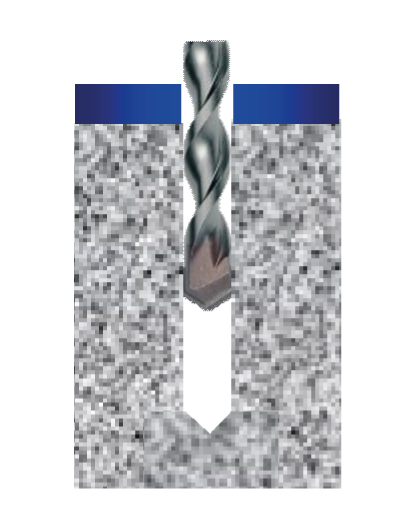

  • Step 1

    Position fixture and drill correct diameter hole to correct depth

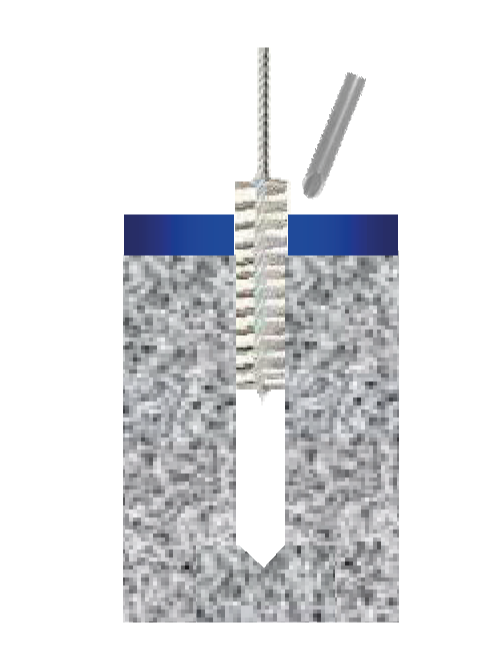

  • Step 2

    Clean hole by brushing and blowing to remove all dust and drilling debris.

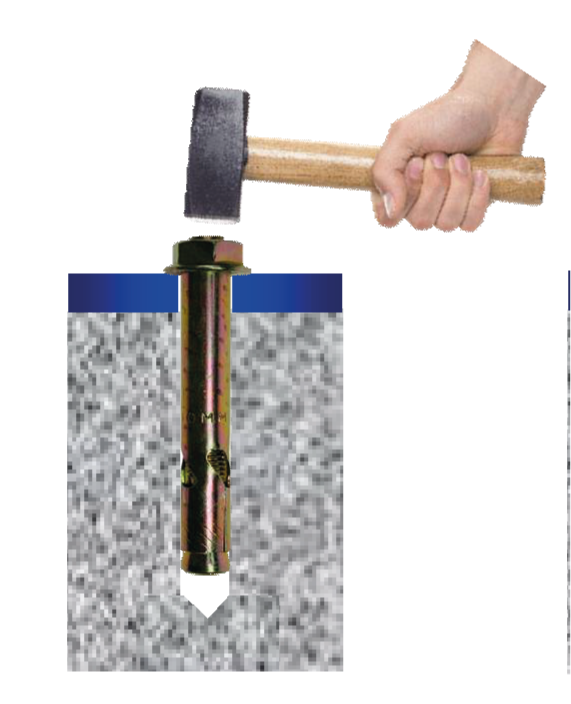

  • Step 3

    Insert assembled anchor through fixture into concrete.

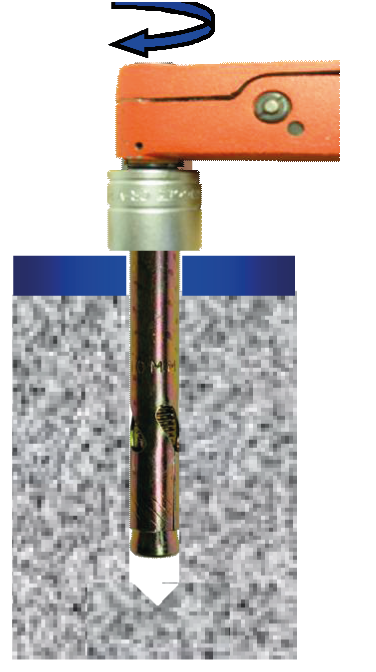

  • Step 4

    Tighten with torque wrench to recommended torque.

Product Description

Hexagon Flange Nut Sleeve Anchors ZYP

Reliable Fixing for Concrete and Masonry Applications

The Hexagon Flange Nut Sleeve Anchor is designed for installers who need a dependable fixing solution across a range of masonry materials. Its thin‑walled sleeve makes it suitable for substrates such as non‑cracked concrete, dense concrete blocks, solid brickwork, and even some natural stone. The zinc and yellow passivated finish provides corrosion resistance for indoor and sheltered outdoor environments, making it a versatile choice for general construction, maintenance, and installation work.

Fast, Simple, and Secure Through‑Fixing

This anchor is supplied pre‑assembled, allowing installers to position the fixture, drill through, and anchor in one continuous process. The torque‑controlled expansion mechanism ensures consistent performance, once the nut is tightened, the sleeve expands evenly to lock the anchor in place. The diagonal slot in the sleeve is engineered to collapse under torque, generating a strong clamping force that secures the fixture tightly against the substrate. This makes it ideal for plates, brackets, rails, racking, and other light‑to‑medium‑duty fixings.

Built for Practical, Everyday On‑Site Use

Whether you're installing handrails, signage, stadium seating, or general metalwork, this sleeve anchor delivers reliable holding power with minimal installation time. The hexagon flange nut provides a secure tightening surface, while the steel body ensures long‑term durability. Its compatibility with multiple base materials makes it a go‑to anchor for tradespeople who need a simple, effective fixing that performs consistently across different job types.

Key Features:

  • Steel construction with zinc & yellow passivated finish
  • Through‑fixing design for fast, simple installation
  • Torque‑controlled expansion ensures consistent performance
  • Diagonal sleeve slot collapses to create strong clamping force
  • Suitable for light‑to‑medium‑duty loads
  • Works in non‑cracked concrete, dense blocks, solid brick, perforated brick, and natural stone
  • Supplied pre‑assembled with nut and washer

Product Details

  • Specifications

    • Material: Steel
    • Finish: Zinc & Yellow Passivated (ZYP)
    • Type: Hexagon flange nut sleeve anchor
    • Installation: Through‑fixing
    • Expansion: Torque‑controlled
    • Load Class: Light–medium duty
    • Suitable Substrates: Concrete, brick, block, stone

  • Whats in the box?

    • 1 x Hexagon Flange Nut Sleeve Anchor Zinc & Yellow Plated (please select a size)
  • Hexagon Flange Nut Sleeve Anchors ZYP

    Hexagon Flange Nut Sleeve Anchors ZYP

When to use or not to use

  • Use When

    • Fixing into non‑cracked concrete, brick, block, or stone
    • You need a quick, pre‑assembled through‑fixing
    • Light‑to‑medium‑duty loads are required
    • You want a torque‑controlled expansion anchor

  • Do Not Use When

    • Fixing into non‑cracked concrete, brick, block, or stone
    • You need a quick, pre‑assembled through‑fixing
    • Light‑to‑medium‑duty loads are required
    • You want a torque‑controlled expansion anchor

Frequently Asked Questions

Can these anchors be used in cracked concrete ?

No, they are designed for non‑cracked concrete only.

Are they suitable for heavy structural loads?

No, they are intended for light‑to‑medium‑duty applications.

Do they come pre‑assembled?

Yes, each anchor is supplied ready to install.
