Desciption

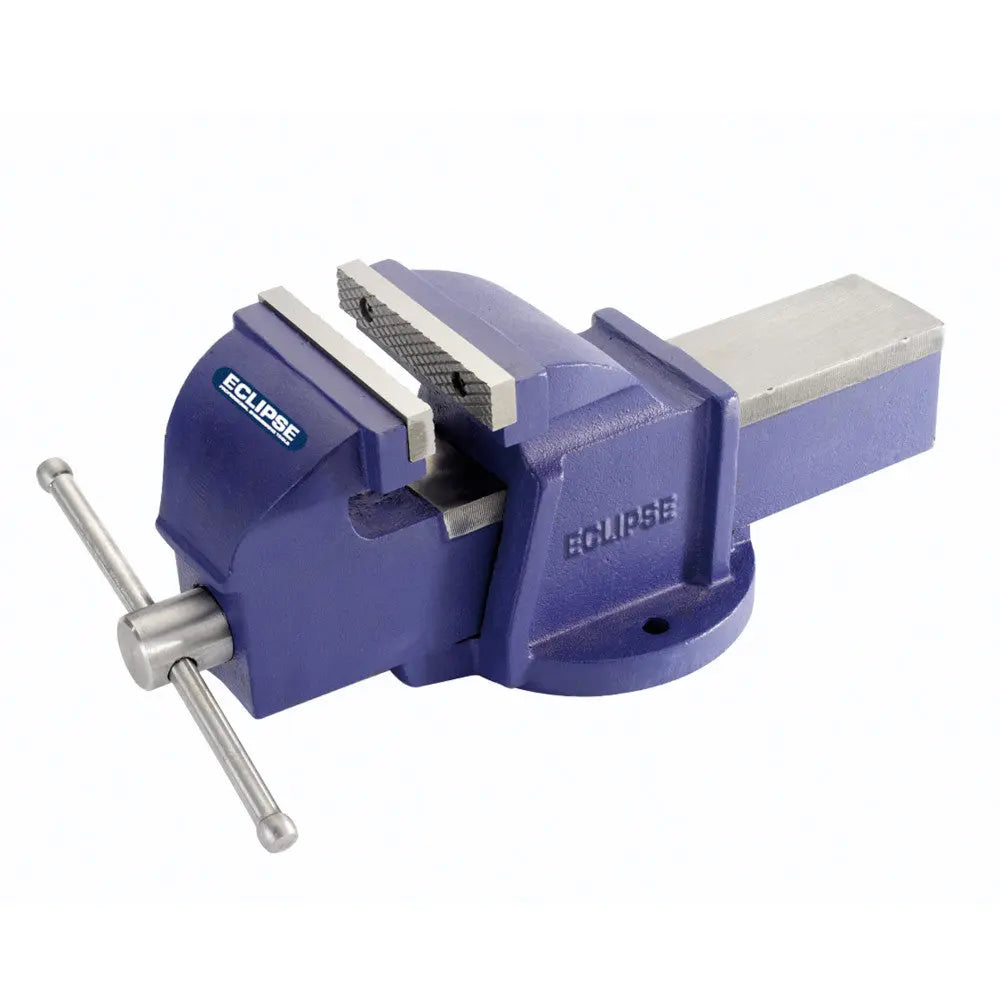

Crafted from high-quality grey cast iron, Eclipse EMV Mechanics’ Vices deliver exceptional performance for general metalworking applications. With a clamping force of up to 4000 Kgf, these vices feature hardened steel jaw plates and a cast iron body. The precision-milled sliding jaw ensures smooth operation, while the base includes fixing holes for bench mounting. Durable and shock-absorbing, these vices are a reliable choice. Accessories like fibre grips, swivel bases, and spare jaw plates are also available.
| Part no | Jaw Width | Throat Depth | Jaw Opening | Clamping Force Kg f (Max) | Net Weight (KG) |
|---|---|---|---|---|---|
| EMV-1 | 75mm (3") | 48mm | 82mm | 1500 Kgf | 4.8 Kg |
| EMV-3 | 100mm (4") | 63mm | 109mm | 2000 Kgf | 9.3 Kg |
| EMV-5 | 125mm (5") | 73mm | 136mm | 2500 Kgf | 15.8 Kg |
| EMV-6 | 150mm (6") | 86mm | 168mm | 3000 Kgf | 24.2 Kg |
| EMV-8 | 200mm (8") | 103mm | 208mm | 4000 Kgf | 38.1 Kg |
